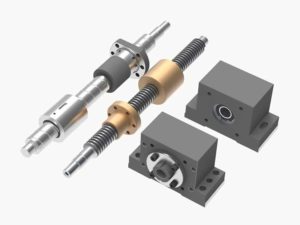

Own finishing guarantees short delivery times + price advantages | Constructive help in selection of screw bearings
LIFTING, LOWERING, FEEDING, CLAMPING, MEASURING ...
LVE | Linear Actuator
Large variety of sizes and drive types – Ready-to-mount – Different guide systems and drive types – Suitable accessories such as couplings, motor flanges, connecting shafts, etc. – Simple and versatile combination possibilities, even of different sizes, to multi-axis systems
LVE ECO | Linear Actuator
Cost-effective – Ready-to-mount – Proven quality of GIA LVE systems – Recirculating ball bearing guides – Simplified motor and gear mounting – Suitable accessories such as motor flanges, proximity sensor fastening, connecting shafts, etc. – Simple combination to multi-axis systems
KR + KK | Compact Linear Unit
Ready-to-mount linear actuator – High performance with smallest dimensions – Two linear guides integrated in the profile – Linear guide rails in 3 dimensions 15, 20 or 25 mm – Optionally available with short or long carriage – Central lubrication system – Optionally with tooth belt (KR) or with ball screw (KK) – 3 profile widths 110, 145 and 200 mm – Suitable accessories such as clamping strips, motor flanges, couplings, etc. – Combination to multi-axis systems possible by means of connecting plates – Support profile made of aluminium, no fixed lengths
LPT + PPT | Precision Positioning Table
Ready-to-mount drive module – Suitable for absorbing high torques and axial loads – High positioning precision possible – High stiffness with correct design – Optionally with ball screw or trapezoidal screw drive – Block bearings with tapered roller or double-row angular contact ball bearings depending on load – Central lubrication system – Suitable accessories such as motor flanges, couplings, proximity sensor mounting, etc. – Protection of guides and screw drives with bellows or sheet metal cover – Simple combination to multi-axis systems possible – Custom versions available
Bevel Gear
Robust cast iron housing – Hardened bevel gears lapped in pairs with spiral toothing – Well-dimensioned roller bearings – 10 variants are available – They can be used in all operating positions and provided with mounting holes on all sides – Their efficiency is 94 to 98 % (depending on speed and operating position)
Screw Jack
Large variety of design variants and sizes (2.5 kN to 500 kN) – Cubic housing, therefore easy to constructively integrate – All gears can be subjected to pressure and tension loads – Extensive accessories for a wide range of mounting situations – Rust-protected design possible – Low backlash design possible – Optionally with ball screw or trapezoidal thread – With trapezoidal thread self-locking to a limited extent
LET'S START A PROJECT
Drive Component
Linear Guides
Stock availability and direct delivery guarantee short delivery times | Customer-specific cutting of guide rails to length in-house
Drive Component
Couplings, Clamps and Cardan Shafts
Extensive product range | Short delivery times
Drive Component
Motors +
Accessories
It is becoming more and more important to develop cost-effective drives tailored to the application. In addition to the selection of the power transmission, e.g. gear wheel, chain, tooth belt or screw, the right combination of motor, gear and control is decisive. We will be happy to assist you in selecting the right drive concept for your needs.
